Available from September 2021
CINELLI PRESSURE DISC 2021
Due to the difficulties caused by the Covid-19, this product will be available from the end of June 2021.
We recommend that you make your purchase/reservation in time as the 2021 production for different models and sizes is already almost sold outt
Born to race, this monocoque high modulus carbon T700 fiber aero road bike is designed to cut through the air. Password: integrate!
The new born Cinelli aerodynamic racing frame integrates anything possible: the special aero seat tube, the custom colour FSA Vision Metron 5D ACR fully integrated aero handlebar, with integrated headset, cockpit and fork, for the cleanest cable routing solution and fastest racing geometry ever.
The bicycle natural choice is for electronic groupset.

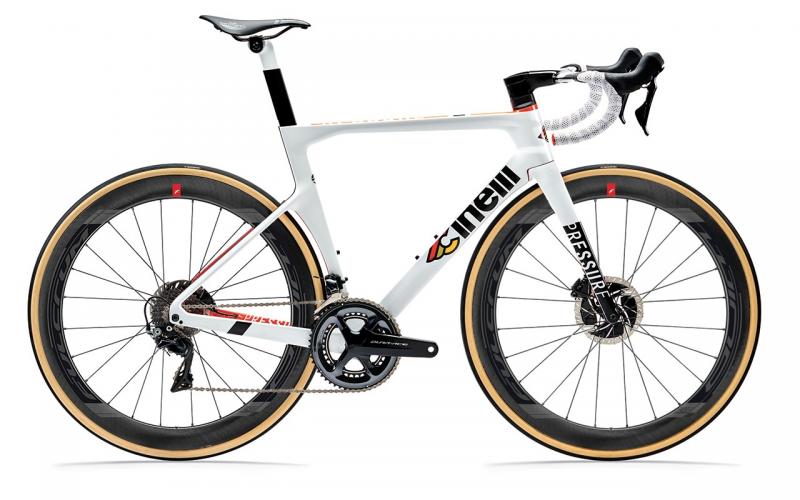

*The image has the sole purpose of presenting the product. Some assembly specifications may vary.
Sizes: XS (46) - S (49) - M (52) - L (55) - XL (58)
Frame: COLUMBUS T800 Carbon Monocoque
Headset: IS 52/28.6 | IS 52/40 FSA ACR
Seat Post: Aero Integrated / Carbon rail compatible / L 300 mm (XS) - 350 mm (S-M-L-XL)
Seat Clamp: Integrated
BB Standard: Pressfit 86,5x41 mm
Cable routing: Full internal - Di2/EPS compatible
Color: Rock the white
Tire Clearance: Up to 700x30c
Fork: COLUMBUS Disc 1-1/8” - 1-1/2” Tapered Carbon Monocoque
Weight: Frame 960 g (size M) - Fork 390g (uncut)
Brakes Standard: Flat mount disc brake
Rotor Size: up to 160 mm
Hub spacing: Rear TA Ø12x142 mm / M12x1,5 L165 mm skewer
Front TA Ø12x100 mm / M12x1,5 L120 mm skewer
Features: Di2-EPS compatible / Skewer included
SRAM RED ETAP AXS:
Stem:
Handlebar: Vision Metron 5D ACR
Crankset: Sram Red eTap AXS / 48-35T
Size: 170 (XS) 172.5 (S/M/L) 175 (XL)
Seatpost: CINELLI Carbon Integrated
Tape: CINELLI Cork Movimento centrale
Bottom bracket: Sram DUB PressFit
Front derailleur: Sram Red eTap AXS Freni
Brakes: Sram Red AXS / 160 mm Front rotor - 140 mm Rear rotor
Cassette: Sram Red AXS / 10-28T Cambio /
Rear derailleur: Sram Red eTap AXS / 12 Speed
Shifters: Sram Red eTap AXS Ruote
Wheels: Fulcrum Wind 550 DB
Tyres: VITTORIA Zaffiro Pro / 700x28c Serie sterzo
Head set: Integrated FSA ACR
Chain: Sram Force Flathead Sella
Saddle: SSM Shortfit
SHIMANO DURA ACE Di2:
Stem
Handlebar: Vision Metron 5D ACR
Crankset: Shimano Dura-Ace / 52-36T
Size: 170 (XS) 172.5 (S/M/L) 175 (XL)
Seatpost: CINELLI Carbon Integrated
Tape: CINELLI Cork Movimento centrale
Bottom bracket: Shimano Dura-Ace
Front derailleur: Shimano Dura-Ace Di2 Freni
Brakes: Shimano Dura-Ace / 160 mm Front rotor - 140 mm Rear rotor
Cassette: Shimano Dura-Ace / 11-30T
Rear derailleur: Shimano Dura-Ace Di2 / 11 Speed
Shifters: Shimano Dura-Ace Di2 Ruote
Wheels: Fulcrum Wind 550 DB
Tyres: VITTORIA Zaffiro Pro / 700x28c
Headset: Integrated FSA ACR
Chain: Shimano Dura-Ace Sella
Saddle: SSM Shortfit
SHIMANO ULTEGRA Di2:
Stem
Handlebar: Vision Metron 5D ACR
Crankset: Shimano Ultegra / 52-36T
Size: 170 (XS) 172.5 (S/M/L) 175 (XL)
Seatpost: CINELLI Carbon Integrated
Tape: CINELLI Cork Movimento centrale
Bottom bracket: Shimano / SM-BB72-41
Ft. derailleur: Shimano Ultegra Di2 Freni
Brakes: Shimano Ultegra / 160 mm Front rotor - 140 mm Rear rotor
Cassette: Shimano Ultegra / 11-30T Cambio
Rear derailleur: Shimano Ultegra Di2 / 11 Speed
Shifters: Shimano Ultegra Di2 Ruote
Wheels: Fulcrum 600 DB
Tyres: VITTORIA Zaffiro Pro / 700x28c
Headset: FSA ACR
Chain: Shimano Ultegra Sella
Saddle: SSM Shortfit
SHIMANO ULTEGRA:
Stem
Handlebar: Vision Metron 5D ACR
Crankset: Shimano Ultegra / 52-36T
Size: 170 (XS) 172.5 (S/M/L) 175 (XL)
Seatpost: CINELLI Carbon Integrated
Tape: CINELLI Cork Movimento centrale
Bottom bracket: Shimano / SM-BB72-41
Ft. derailleur: Shimano Ultegra Freni
Brakes: Shimano Ultegra / 160 mm Front rotor - 140 mm Rear rotor
Cassette: Shimano Ultegra / 11-30T
Rear derailleur: Shimano Ultegra / 11 Speed
Shifters: Shimano Ultegra Ruote
Wheels: Fulcrum 600 DB
Tyres: VITTORIA Zaffiro Pro / 700x28c
Headset: FSA ACR
Chain: Shimano Ultegra Sella
Saddle: SSM Shortfit
