The Campagnolo, Shimano Dura Ace di2, and Sram Red versions have the integrated Vision Metron handlebar, the other Fsa Energy versions
BIANCHI CV
BIANCHI CV is Bianchi's INTEGRATED VIBRATION CANCELLING SYSTEM for cycling, with innovative and exclusive use of Materials Sciences Corporation's patented Countervail® material.
Countervail® is a carbon composite-material system that, with special fiber architecture, combines patented structural carbon with viscoelastic resin. Countervail® cancels 80% of vibrations while increasing the stiffness and strength of our carbon frames and forks.
Traditional passive damping in frames using superficial rubber inserts and isolators are marginally effective compared to the integrated carbon Countervail® system developed by Bianchi for cycling and tested in NASA aerospace operations.
STAY AERO FOR LONGER
Countervail® cancels road vibrations and reduces turbulence in the frame that affect its performance. it enhances peak power output by maximizing the vibrational dissipation in the surrounding polymers.
Advantage: hold your extreme aero position at high speeds for longer and maximize your aerodynamic advantage
MAXIMUM CONTROL AT HIGH SPEED
Countervail® provides unparalleled vibration cancelling properties, ensuring the frame’s optimum performance at high speed. countervail® eliminates road buzz to maximize ride control, and reduces muscular fatigue
CUTTING EDGE OF AERODYNAMICS
Oltre XR.4 is designed with advanced CFD (Computational Fluid Dynamics) simulation software to predict the impact of aerodynamic drag
FLOW VISUALIZATION
A special fluorescent paint (borrowed form F1 Car design) is flown over the frame and fork's surfaces at race speed. The interpretation of their trace patterns and intensity reveal the aerodynamic performance of every aspect.

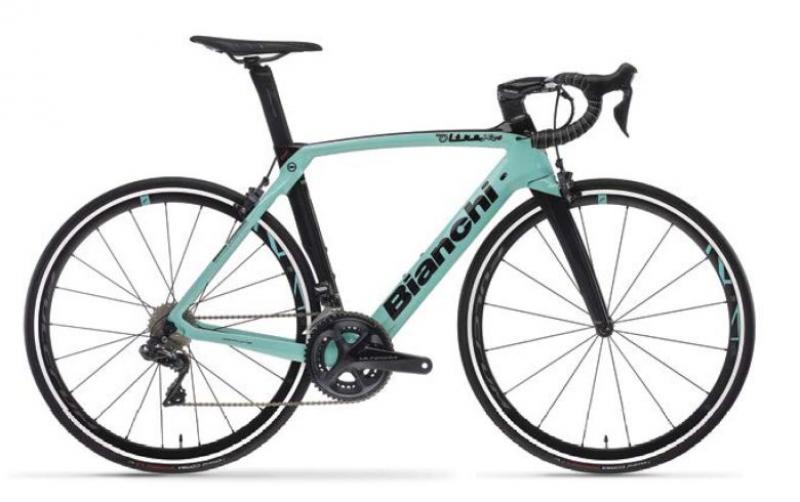

TECHNICAL FEATURES:
Frame:
Monocoque carbon hi-modulus frame with Countervail material
Special aero shape designed with CFD
Fully internal cable routing
Weight: 980g (55 size, +/- 5%, black color)
Aero Headtube:
Tapered aero headtube 1.1/8” to 1.4”, inspired by Aquila CV profiles
The headtube is integrated with aero handlebar and headset
Two different top cap for Vision Metron 5D handlebar and conventional stems
BB Area:
PressFit 86.5 x 41 mm
Special Chainstays:
Straight and wider chainstay for higher stiffness and internal cable routing for mechanical and electronic groupset
Full carbon dropout with metal insert
Dedicated Seatstays:
Wide seatstay and with aero profiles
Direct mount brake system
Hidden seatpost clamp for perfect aerodynamic design and nice looking
Aero seatpost with integrated look and adjustable head clamp offset 25 mm or -10 mm
Fork:
Full carbon 1.1/8” to 1.4” with Countervail material
Head crown tube 1.4” with integrated design for perfect head tube connection
Blade with bent shape and narrow front surface to reduce the drag
Reactive geometry
Direct mount brake system
Weight: 370 g
The Rim Brakes version Frame is without handlebar, the complete bike is available with two choises.
The Campagnolo, Shimano Dura Ace di2, and Sram Red versions have the integrated Vision Metron handlebar, the other Fsa Energy versions (internal cables).
VISION METRON 5D INTEGRATED AERO BAR, BAR/STEM INTEGRATED, MATERIAL UD WEAVE CARBON, DROP 125MM, REACH 80MM, DI2 COMPATIBLE, EXT:
100x400 mm - size 47/50 cm
110x420 mm - size 53/55 cm,
120x420 mm - size 57/59 cm,
130x440 mm - size 61 cm
FSA ENERGY SCR COMPACT, AL7050DB, DIAM. 31.8MM, DROP 125MM, REACH 80MM, STEM FSA NS ACR, 3D FORGED/CNC AL6061, -6°, DI2 COMPATIBLE, EXT:
stem 90 mm handlebar 40 cm, size 47
stem 100 mm handlebar 40 cm, size 50
stem 110 mm handlebar 42 cm, size 53
stem 110 mm handlebar 42 cm, size 55
stem 120 mm handlebar 42 cm, size 57
stem 120 mm handlebar 44 cm, size 59
stem 130 mm handlebar 44 cm, size 61
