Improved control.
An overhauled geometry means the chain stays are shorter, the reach is longer and the head tube angle is slacker, making this the perfect bike for any cross-country racer.
The Methanol CV full-suspension will not only improve the way you ride, it will change how you ride. Technical descents once deemed too rough to attempt are now a breeze thanks to the Bianchi CV System: the use of Countervail special carbon material and viscoelastic resin allow to cancel 80% of the vibration, resulting in improved after shock control.
Improved travel.
The trickiest root and rock sections will disappear below you. The Methanol CV FS isn’t fazed by the biggest drops and roughest tracks
Carbon frame.
The all-new carbon frame is built exclusively for use with 1x drivetrains, so you can keep spec weight to a minimum, and it comes in 15”, 17”, 19” and 21” versions. As you’d expect with a competition-crushing race bike, the frame has internal cable routes and is dropper post-compatible. It runs up to 29×2.4” tyres and has a Boost 12x148TA rear axle.

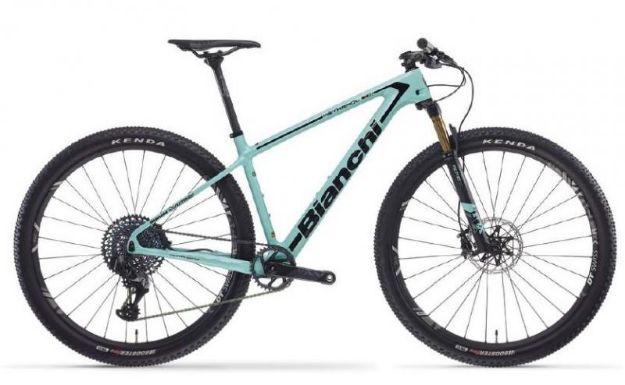

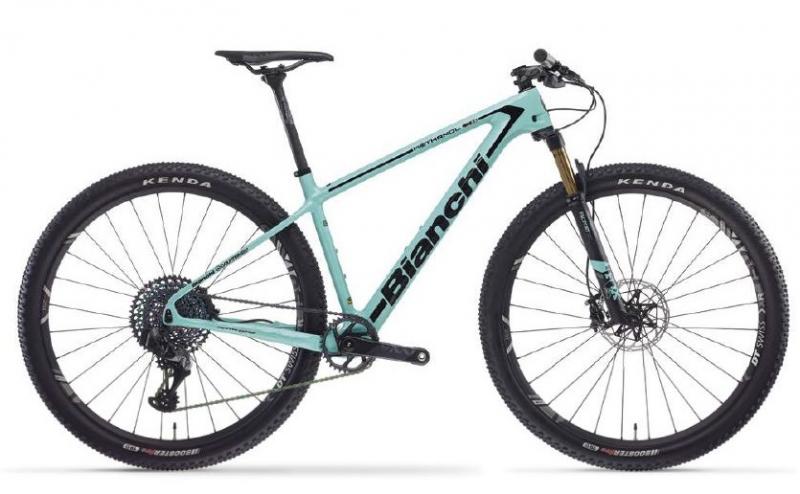

YQB73I METHANOL 9.1 CV RS - SRAM XX1 EAGLE AXS 1x12 - XRC 1501 SPLINE CARBON:
SPECIFICATION:
Code: YQB73
Color: 2A - CK16 / Black glossy
Frame: Methanol CV RS 29 "carbon HM monocoque w / Bianchi CV, 1.5" tapered head tube, Pressfit BB92 (41x92),
1x drivetrains only, 27.2 mm seatpost, PM 160 mm carbon dropouts 12x148 BOOST, internal cable routing Di2 compatible, measures 15, 17, 19, 21"
Screws: Carbon-Ti AL7075-T6 large head screws, Torx M5 * 14 mm (15''> 2 pcs -17,19,21"> 4 pcs), with Bianchi & Carbon-Ti logos
Seatpost: COLLAR diam. 31.8 mm
Headset: Fsa Orbit C-40, NO.42 / ACB-A, 1.1 / 8"-1.5" c / cap 4.3 mm
Fork: Fox 32 SC 29" Factory Kashima remote, 100 mm travel, FIT4 2 positions c / adj. open mode PTU, head tube
conical Alu 1.5", Kabolt axis 15x110 mm, rake 44 mm
Controls: Sram XX1 Eagle AXS 12v MatchmakerX
Shift: Sram XX1 Eagle AXS 12v
Crankset: Sram XX1 Eagle DUB 34T, carbon crank, line 52 mm chain compatible 148 BOOST, direct mount, CNC machined crown, length. crank arm: 170 mm-15'', 175 mm-17/21"
Bottom Bracket: Sram DUB PressFit BB92, 41x92 mm
Chain: Sram PC-XX1 Eagle 12v w / PowerLock
Sprockets: Sram XG-1299 Eagle Rainbow 12v, 10, 12, 14, 16, 18, 21, 24, 28, 32, 36, 42, 52T
Brakes: Sram Level Ultimate, aluminum calipers, carbon levers, w / adapter 20 mm front disc 180 mm, collar
matchmakerX clamp
Discs: Sram Centerline X, front diam. 180 mm and post. 160 mm, 2-pieces, 6 holes
Rims/Wheels: Dt Swiss XRC 1501 Spline One 29" Carbon 30 mm, axle through 15x110 mm, 12x148 mm, XD body, rim
TL-ready w / tubeless tape and valve, internal width 30 mm
Tires: Kenda Booster Pro 29x2.20, Tubeless Race compound, 120Tpi, foldable, ETRTO 56-622
Handlebar Steam: Fsa KFX, AL2014 3D forged and CNC machined w / Ti screws and carbon faceplate, UD carbon finish, -12¦, 1.1 / 8", 31.8 mm, length: 70 mm-15", 80 mm-17'', 90 mm-19/21"
Handlebar: Fsa KFX ICR flat, UD carbon, width 760 mm, diam. 31.8 mm, 9th backsweep, 4th upsweep
Grips/Tape: T-One T-GP43X, silicone grips, 130 mm length
Seat Post: Fsa KFX SB0, UD carbon monocoque w / MTC head 2-screws, Di2 compatible, diam. 27.2 mm, set back
0 mm, length 350 mm-15" and 400 mm-17/21"
Saddle: Fi'zi: k Taiga, S-alloy fork
YQB74I METHANOL 9.2 CV RS - SHIMANO XTR 1x12 - DT XR 1700:
SPECIFICATION:
Code: YQB74
Color: 2A - CK16 / Glossy black, Palette
Frame: Methanol CV RS 29" carbon HM monocoque w / Bianchi CV, 1.5" tapered head tube, Pressfit BB92 (41x92), 1x drivetrains only, 27.2 mm seat post, PM 160 mm carbon dropouts 12x148 BOOST, passage Di2 compatible internal cables, measures 15,17,19,21"
Screws: Carbon-Ti AL7075-T6 large head screws, Torx M5 * 14 mm (15''> 2 pcs -17,19,21"> 4 pcs), with Bianchi & Carbon-Ti logos
Seatpost: COLLAR diam. 31.8 mm
Headset: Fsa Orbit C-40, NO.42 / ACB-A, 1.1 / 8"-1.5" c / cap 4.3 mm
Fork: Fox 32 SC 29" Factory Kashima remote, 100 mm travel, FIT4 2 positions c / adj. open mode PTU, head tube
conical Alu 1.5", Kabolt axis 15x110 mm, rake 44 mm
Shifters: Shimano XTR SL- M9100IR 1x12s, I-spec EV
SHIFT Shimano XTR RD-M9100SGS Shadow + Design 12v, top normal, direct attack, Max 10-51T
Crankset: Shimano XTR FC-M9100-1 34T, 162 mm Q-Factor, line chain 52 mm, length. crank arm: 170 mm-15", 175 mm-
17/2 "
Bottom Bracket: Shimano SM-BB94-41A for BB92
Chain: Shimano CN-M9100 12v
Sprockets: Shimano CS-M9100-12, 10-12-14-16-18-21-24-28-33-39-45-51T
Brakes: Shimano XTR M9100, w / front adapter 180 mm, pads resin
DISCS Shimano RT-MT900 diam. ant. 180 mm and post. 160 mm, Center Lock c / IceTech
Rims/Wheels: DT Swiss XR 1700 Spline 29"25 mm, thru axle 15x110 mm, 12x148 mm, Shimano 12s body, Center
Lock, TL-ready rims w / tubeless tape and valve, width. internal 25 mm
Tires: Kenda Booster Pro 29x2.20, Tubeless Race compound, 120Tpi, foldable, ETRTO 56-622
Handlebar Stem: Fsa SL-K, AL2014 forged 3C / CNC w / faceplate, +/- 12¦,
1.1 / 8", diam. 31.8 mm, length: 70 mm-15", 80 mm-17'', 90 mm-19/21"
Handlebar: Fsa SL-K flat, UD carbon, width 740 mm, diam. 31.8 mm, 9th backsweep, 4th upsweep
Grips/Tape: T-One T-GP43X, silicone grips, 130 mm length
Seat Post: Fsa SL-K SB0, UD carbon steerer, MTC head, diam. 27.2 mm, setback 0 mm, length: 350 mm-15" mm,
400 mm-17/21"
Saddle: Fi'zi: k Taiga, S-alloy fork
YQBR1I METHANOL 9.3 CV RS - SHIMANO XT 1x12 - DT XR 1700:
SPECIFICATION:
Code: YQBR1
Color: 2A - CK16 / Glossy black, Palette
Frame: Methanol CV RS 29" carbon HM monocoque w / Bianchi CV, 1.5" tapered head tube, Pressfit BB92 (41x92),
1x drivetrains only, 27.2 mm seatpost, PM 160 mm carbon dropouts 12x148 BOOST, internal cable routing
Di2 compatible, measures 15, 17, 19, 21"
Screws: Carbon-Ti AL7075-T6 large head screws, Torx M5 * 14 mm (15''> 2 pcs -17,19,21 > 4 pcs), with Bianchi & Carbon-Ti logos
Seatpost: COLLAR diam. 31.8 mm
Headset: Fsa Orbit C-40, NO.42 / ACB-A, 1.1 / 8 "-1.5" c / cap 4.3mm
Fork: Rock Shox SID SL Select 29", CHARGER RL, Solo Air 100 mm w / oneLoc remote, tapered alu head tube
1.5", 15x110 mm Maxle Stealth thru axle, 32 mm stanchions, magnesium sheaths, PM 160 mm, 44 mm offset
CONTROLS Shimano XT SL- M8100R 12v
Shift: Shimano XT RD-M8100-SGS Shadow Design + 12v, top normal, direct connection, max 10-51T
Crankset: Shimano XT FC-M8100-1, 32T, crank length: 170 mm-15", 175 mm-17/21"
Bottom Bracket: Sram DUB PressFit BB92 (41x92)
Chain: Shimano CN-M7100, 12v
Sprockets: Shimano CS-M8100-12, 10-51T
Brakes: Shimano XT M8100 w / front adapter 180 mm, pads resin
DISCS Shimano RT-70, Center Lock, front 180 mm and post. 160 mm
Rims/Wheels: DT Swiss XR 1700 Spline 29" 25 mm, thru axle 15x110 mm, 12x148 mm, Shimano 12s body, Center Lock, TL-ready rims w / tubeless tape and valve, width. internal 25 mm
Tires: Kenda Booster Pro 29x2.20, Tubeless Race compound, 120Tpi, foldable, ETRTO 56-622 Tec Cursus AL7050-T6 3D Forged
Handlebar Stem: +/- 7¦, 1.1 / 8", 31.8 mm, length: 70 mm-15'', 90 mm-17/19", 100 mm-21"
Handlebar: Tec Cursus flat, AL2014-T6 double butted, width 740 mm, diam. 31.8 mm, 9° backsweep
Grips/Tape: T-One T-GP43X, silicone grips, 130 mm length
Seat Post: Tec Cursus Carbon SB0, UD carbon steerer w / head in forged alloy, diam. 27.2 mm, 0 mm setback, length
350 mm-15", 400 mm-17/21"
Saddle: Fi'zi: k Taiga, S-alloy fork
