Improved control.
An overhauled geometry means the chain stays are shorter, the reach is longer and the head tube angle is slacker, making this the perfect bike for any cross-country racer.

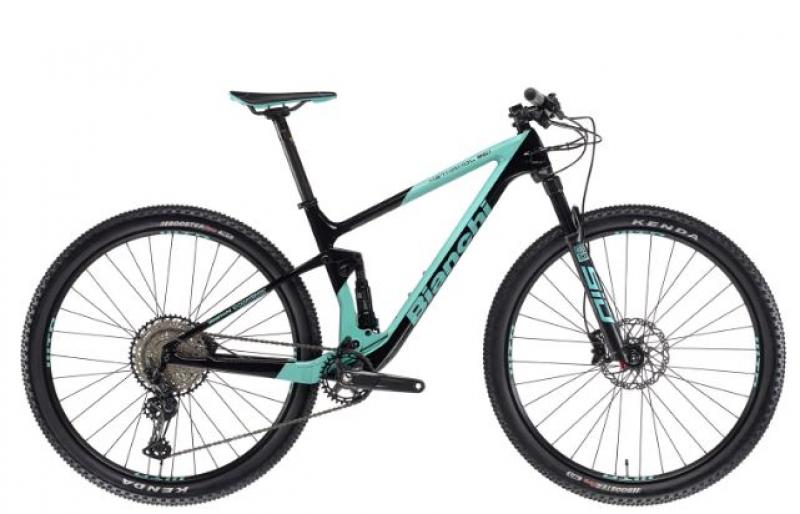

The Methanol CV full-suspension will not only improve the way you ride, it will change how you ride. Technical descents once deemed too rough to attempt are now a breeze thanks to the Bianchi CV System: the use of Countervail special carbon material and viscoelastic resin allow to cancel 80% of the vibration, resulting in improved after shock control.
Improved travel.
The trickiest root and rock sections will disappear below you. The Methanol CV FS isn’t fazed by the biggest drops and roughest tracks
Carbon frame.
The all-new carbon frame is built exclusively for use with 1x drivetrains, so you can keep spec weight to a minimum, and it comes in 15”, 17”, 19” and 21” versions. As you’d expect with a competition-crushing race bike, the frame has internal cable routes and is dropper post-compatible. It runs up to 29×2.4” tyres and has a Boost 12x148TA rear axle.
Frameset.
Methanol CV FS 100mm 29” full carbon HM monocoque w/Countervail, 1.5” tapered HT, BB92, only 1x drivetrain, PM160mm carbon dropout, 12x148mm BOOST, internal cable routing, seatpost diam. 31,6mm, shock lenght/travel 190/40mm w/eyelets 20mm x diam.8mm, sizes 15-17-19-21”
rear shock Fox Float DPS Factory Kashima Remote
headset Fsa Orbit C-40
METHANOL 9.3 CV FS - SHIMANO XT/SLX 1x12sp WTB KOM i25
SPECIFICATIONS:
Measurements: 380 430 480 530
Frame: Methanol Cv Fs 100 mm 29" Full Carbon Hm Monocoque C / Bianchi Cv, 1.5" Tapered Steering, Bb92, 1 x Transmissions Only, Pm 160 mm Carbon Droppers, 12x148 mm Boost, Internal Cable Routing, Diam. Seatpost 31.6 mm, Length / Stroke Ammo 190 / 40 mm W / Eyelets 20 mm X Diam.8 mm, Sizes 15-17-19-21"
Fork: Rock Shox Sid Sl Select 29", Charger Rl, Solo Air 100 mm
Rear Shock: Rock Shox Sid Luxe Select + Rlr Debonair
Steering: Fsa Orbit C-40
Commands: Shimano Slx 12v
Exchange: Shimano Xt Rd-m8100-sgs Shadow Design + 12v
Crankset: Shimano Fc-mt511-1, 32t, Length. Crank: 170 mm-15", 175 mm-17/21"
Central Movement: Shimano Bb-mt500-pa Pressfit 41x92 mm
Chain: Shimano Cn-m7100, 12v
Cassette: Shimano Cs-m7100-12, 10-51t
Brakes: Shimano Br-m6100
Rear Hub: Shimano Fh-mt510-b
Front Hub: Formula Cl-811
Coverings: Kenda Booster Pro 29x2.20
Attack: Tec Cursus, Al7050-t6 3d Forged W / Forged Alloy Front, +/- 7º, 1.1 / 8", Diam. 31.8 mm, Length: 60 mm-15", 70 mm-17", 80 mm-19", 90 mm-21"
Fold: Tec Cursus Flat, Al2014-t6 Double Thickness, Width 740 mm, Diam. 31.8 mm, Backsweep 9°
Knobs: T-one T-gp43x
Seat Post: Tec Cursus Carbon Sb0, Ud Carbon Sleeve W / Forged Alloy Head, Diam. 31.6 mm, Backward 0 mm, Length: 350 mm-15", 400 mm-17/21"
Saddle: Fi'zi: K Taiga, S-alloy Fork
Rotor: Shimano Rt-54, 180 mm Ant & 160 mm Rear
METHANOL 9.2 CV FS - SHIMANO XTR/XT 1x12sp DT Swiss Spline XR 1700
SPECIFICATIONS:
Measurements: 380 430 480 530
Frame: Methanol Cv Fs 100 mm 29" Full Carbon Hm Monocoque C / white Cv, 1.5" Tapered Steering, Bb92, 1x Drivetrains, Pm 160 mm Carbon Dropouts, 12x148 mm Boost, Internal Cable Routing, Seatpost Diameter 31.6 mm, Ammo Length / Travel 190 / 40 mm C / eyelets 20 mm X Diam.8 mm, Sizes 15-17-19-21"
Fork: Rock Shox Sid Sl Select 29", Charger Rl, Solo Air 100 mm
Rear Shock: Rock Shox Sid Luxe Select + Rlr Debonair
Steering: Fsa Orbit C-40
Commands: Shimano Xt Sl-m8100r 12s
Exchange: Shimano Xtr Rd-m9100 Sgs Shadow + Design 12v
Crankset: Shimano Xtr Fc-m9100-1 34t, Q-Factor 162 mm, Chainline 52 mm, Crank Length: 170 mm-15", 175 mm-17/21"
Central movement: Shimano Sm-bb94-41a For Bb92
Chain: Shimano Cn-m8100, 12v
Cassette: Shimano Cs-m8100-12, 10-51t
Brakes: Shimano Xt Br-m8100
Covers: Kenda Booster Pro 29x2.20
Attack: Tec Cursus, Al7050-t6 Forged 3d C / Forged Alloy faceplate, +/- 7º, 1.1 / 8", Diam. 31.8 mm, Length: 60 mm-15'', 70 mm-17", 80 mm-19, 90 mm-21"
Crease: Tec Cursus Flat, Al2014-t6 Double Thickness, Width 740 mm, Diam.31,8 mm, Backsweep 9°
Knobs: T-one T-gp43x
Seatpost: Tec Cursus Carbon Sb0, Ud Carbon Steerer W / Forged Alloy Head, Diam. 31.6 mm, Setback 0 mm, Length: 350 mm-15", 400 mm-17/21"
Saddle: Fi'zi: k Taiga, S-alloy fork
Rotor: Shimano Rt-mt800 Diam. Front 180 mm And Post. 160 mm
METHANOL 9.1 CV FS - SRAM XX1 EAGLE AXS 1x12sp DT Swiss Spline XRC 1501
SPECIFICATIONS:
Measurements: 380 430 480 530
Frame: Methanol Cv Fs 100 mm 29" Full Carbon Hm Monocoque C / Bianchi Cv, 1.5" Tapered Steering, Bb92, 1x Transmissions Only, Pm 160 mm Carbon Droppers, 12x148 mm Boost, Internal Cable Routing, Diam. Seatpost 31.6 mm, Length / Stroke Ammo 190 / 40 mm W / Eyelets 20 mm X Diam.8 mm, Sizes 15-17-19-21"
Fork: Fox 32 Sc 29" Factory Kashima Remote, 100 mm Stroke
Rear Shock: Fox Float Dps Factory Kashima Remote
Steering: Fsa Orbit C-40
Commands: Sram Xx1 Eagle Axs 12v C / Matchmakerx
Exchange: Sram Xx1 Eagle Axs 12v
Crankset: Sram Xx1 Eagle Axs Dub 34t, Length. Cranks: 170 mm-15", 175 mm-17/21"
Central Movement: Sram Dub Pressfit Bb92, 41x92 mm
Chain: Sram Pc-xx1 Eagle 12v
Cassette: Sram Xg-1299 Eagle Rainbow, 10-12-14-16-18-21-24-28-32-36-42-50t
Brakes: Shimano Xtr M9100
Coverings: Kenda Booster Pro 29x2.20
Attack: Fsa Kfx, Al2014 3d Forged / Cnc Machined With Screws And Carbon Front Panel, Ud Carbon Finish, 1.1 / 8", Diam. 31.8 mm, Angle -12º, Length: 60 mm-15", 70 mm-17", 80 mm- 19", 90 mm-21"
Fold: Fsa Kfx Icr Flat, Carbon Ud, Width 760 mm, Diam. 31.8 mm, 9th Backsweep, 4th Upsweep
Knobs: T-one T-gp43x
Seat Post: Fsa Kfx Sb0 Monocoque Carbon Ud W / Head 2 Screws Mtc, Compatible Di2, Diam. 31.6 mm, Backward 0 mm, Length: 350 mm-15", 400 mm-17/21"
Saddle: Fi'zi: K Taiga, S-alloy Fork
Rotor: Shimano Rt-mt900 Diam. Ant. 180 mm And Post. 160 mm
